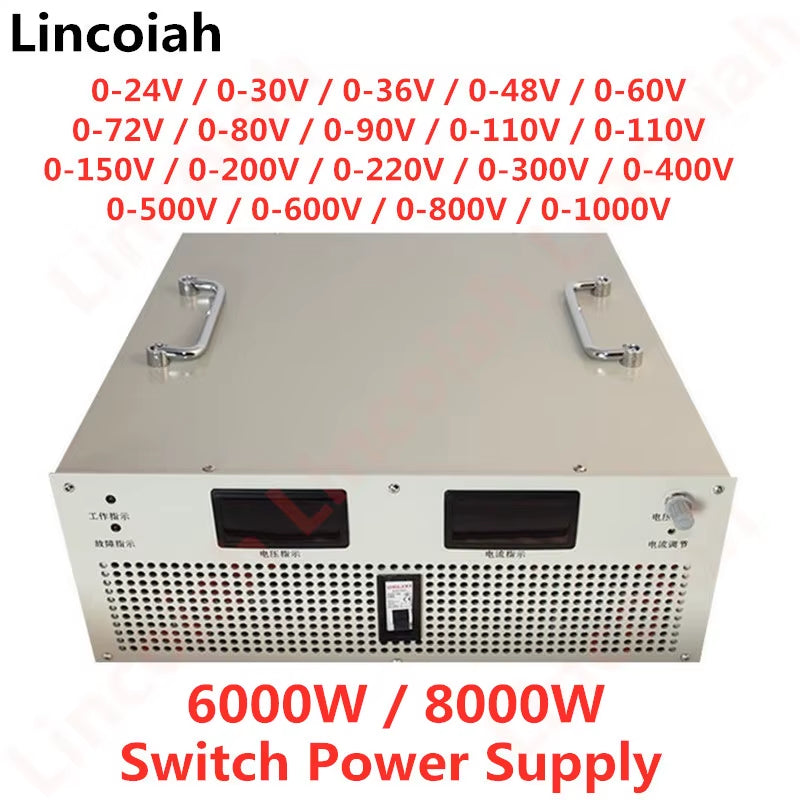

6000W/8000W Switching Power Supply Output 24V 36V 48V 60V 150V 300V 400V 600V 800V 1000V Current Voltage Adjustable AC-DC SMPS

6000W/8000W Switching Power Supply Output 24V 36V 48V 60V 150V 300V 400V 600V 800V 1000V Current Voltage Adjustable AC-DC SMPS

6000W:

Output voltage range: 0-24V; continuously adjustable output current: 0-250A

Output voltage range: 0-30V; continuously adjustable output current: 0-200A

Output voltage range: 0-36V; continuously adjustable output current: 0-166A

Output voltage range: 0-48V; continuously adjustable output current: 0-125A

Output voltage range: 0-60V; continuously adjustable output current: 0-100A

Output voltage range: 0-72V; continuously adjustable output current: 0-83A

Output voltage range: 0-80V; continuously adjustable output current: 0-75A

Output voltage range: 0-90V; continuously adjustable output current: 0-66A

Output voltage range: 0-100V; continuously adjustable output current: 0-60A

Output voltage range: 0-110V; continuously adjustable output current: 0-54A

Output voltage range: 0-150V; continuously adjustable output current: 0-40A

Output voltage range: 0-200V; continuously adjustable output current: 0-30A

Output voltage range: 0-300V; continuously adjustable output current: 0-20A

Output voltage range: 0-400V; continuously adjustable output current: 0-125A

Output voltage range: 0-500V; continuously adjustable output current: 0-12A

Output voltage range: 0-600V; continuously adjustable output current: 0-10A

Output voltage range: 0-800V; continuously adjustable output current: 0-7.5A

Output voltage range: 0-1000V; continuously adjustable output current: 0-6A

8000W:

Output voltage range: 0-24V; continuously adjustable output current: 0-333A

Output voltage range: 0-30V; continuously adjustable output current: 0-266A

Output voltage range: 0-36V; continuously adjustable output current: 0-222A

Output voltage range: 0-48V; continuously adjustable output current: 0-166A

Output voltage range: 0-60V; continuously adjustable output current: 0-133A

Output voltage range: 0-72V; continuously adjustable output current: 0-111A

Output voltage range: 0-80V; continuously adjustable output current: 0-100A

Output voltage range: 0-90V; continuously adjustable output current: 0-88A

Output voltage range: 0-100V; continuously adjustable output current: 0-80A

Output voltage range: 0-110V; continuously adjustable output current: 0-72A

Output voltage range: 0-150V; continuously adjustable output current: 0-53A

Output voltage range: 0-200V; continuously adjustable output current: 0-40A

Output voltage range: 0-300V; continuously adjustable output current: 0-26A

Output voltage range: 0-400V; continuously adjustable output current: 0-20A

Output voltage range: 0-500V; continuously adjustable output current: 0-16A

Output voltage range: 0-600V; continuously adjustable output current: 0-13A

Output voltage range: 0-800V; continuously adjustable output current: 0-10A

Output voltage range: 0-1000V; continuously adjustable output current: 0-8A

Applications:

1. PCB board manufacturing industry

2. LED products, motors and dc fans test,

3. Electrofacing, electrolyzation, electronic components ageing

4. Laboratory , Electronic equipment , Automatic Test Equipment

5. All other occasions need to use DC Power Supply

features:

1. single phase, single output dc power supply

2. constant voltage and constant current operation (C.C and C.V. automatic conversion)

3. both current and voltage can be adjusted from 0 to rated value

4. 2LED digital display

5. Built-in EMI filter.(have anti-interference circuit)

6. intelligent temperature control fan to help power supply cooling fast

specifications:

Model No:CL-S-6000/8000

Brand：Lincoiah

Input voltage: 220VAC±10% 50-60Hz or 110VAC±10% 50-60Hz,3phase380V

Working conditions: -10℃ -40℃ relative humidity :< 90%

Storage conditions: -20℃-80℃ relative humidity :< 80%

Efficiency >85%

Efficiency factor >0.85

Load adjustment rate: <1%

Voltage adjustment rate: <0.1%

Output voltage adjustment rate: <0.1%

Ripple voltage: <0.5%

Protection :A、input overload turn off protection

B、Output over-voltage protection

C、output over-current protection

D、Output short circuit protection

E、Output power protection

F、Overheating protection for the whole machine

Insulation resistance ≥20M

Input pressure for casing ≥AC1500V

Input pressure for output ≥AC1500V

Output pressure for casing ≥AC500V

Average time for No-fault ≥50000H

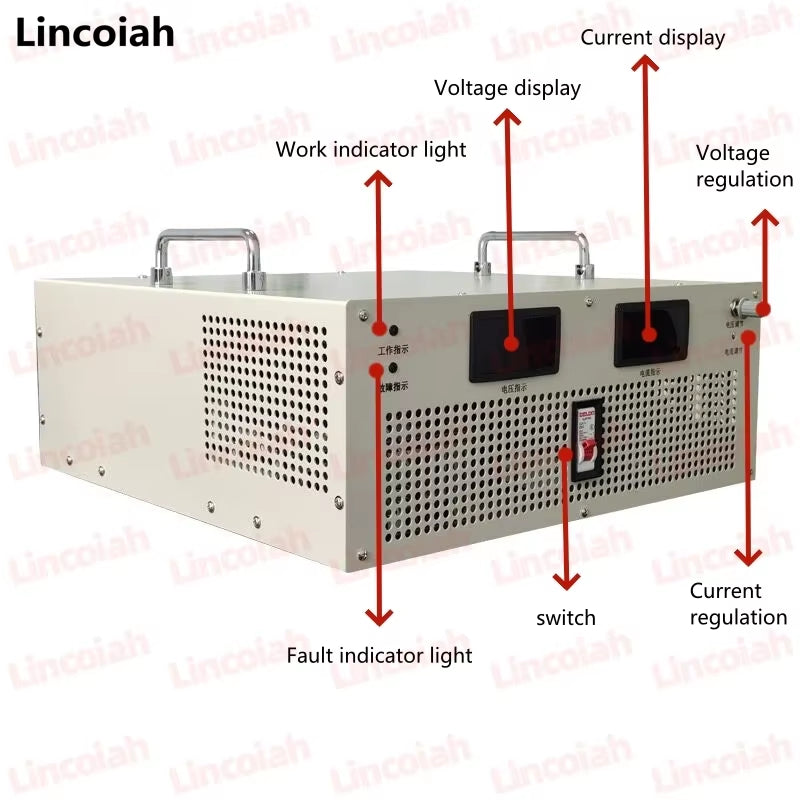

Voltage and current both show

Rise up time：full load is 50ms (Typical value)

Keep time：full load is 20ms (Typical value)

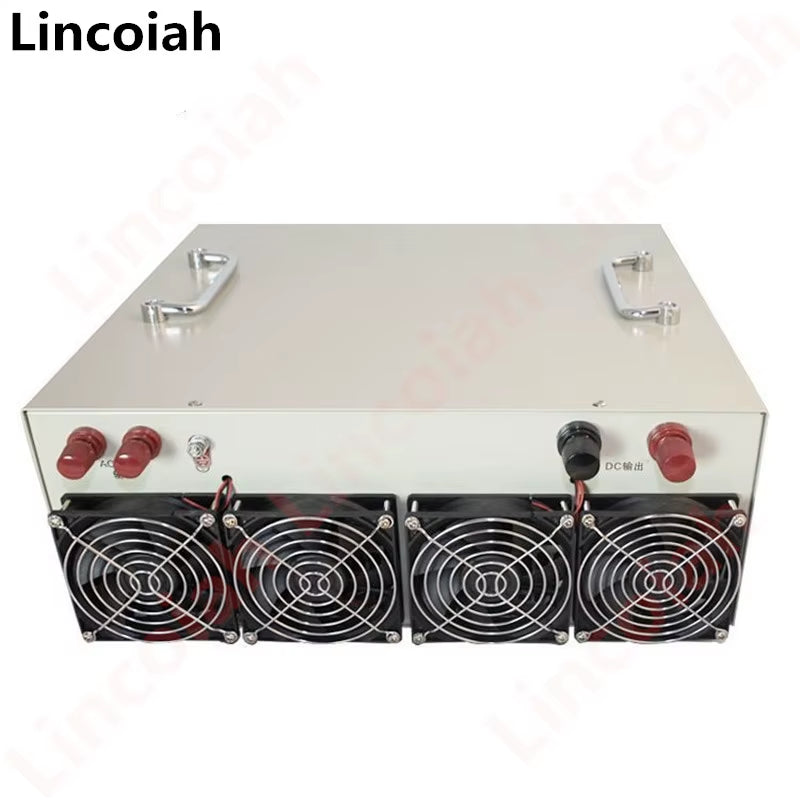

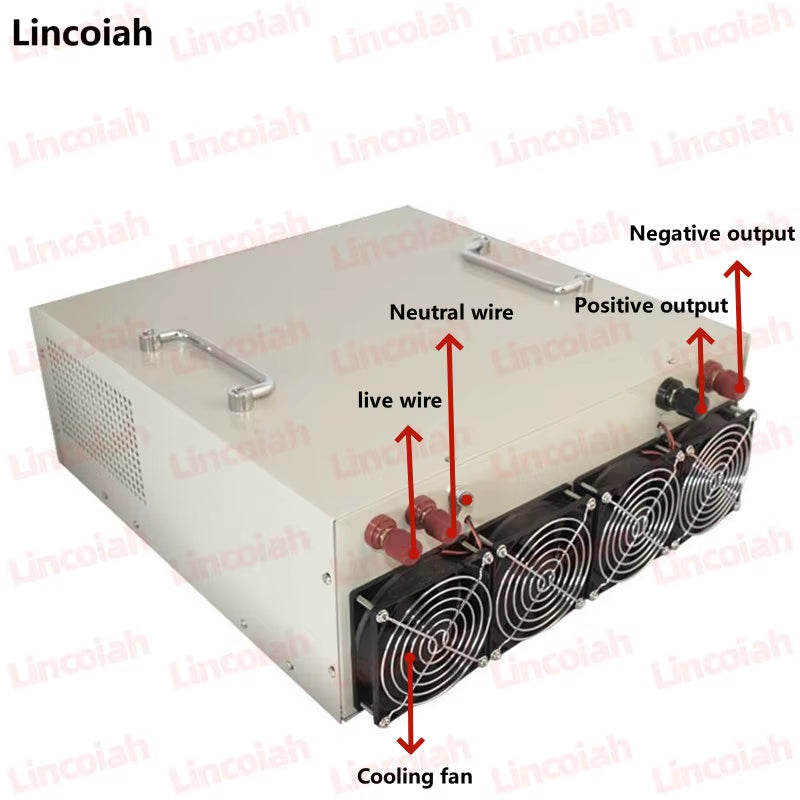

Cooling way：fan

Safety standards：as GB4943，UL60950-1,EN60950-1

EMC standards：as GB9254, EN55022 CLASS A

Only indoor use

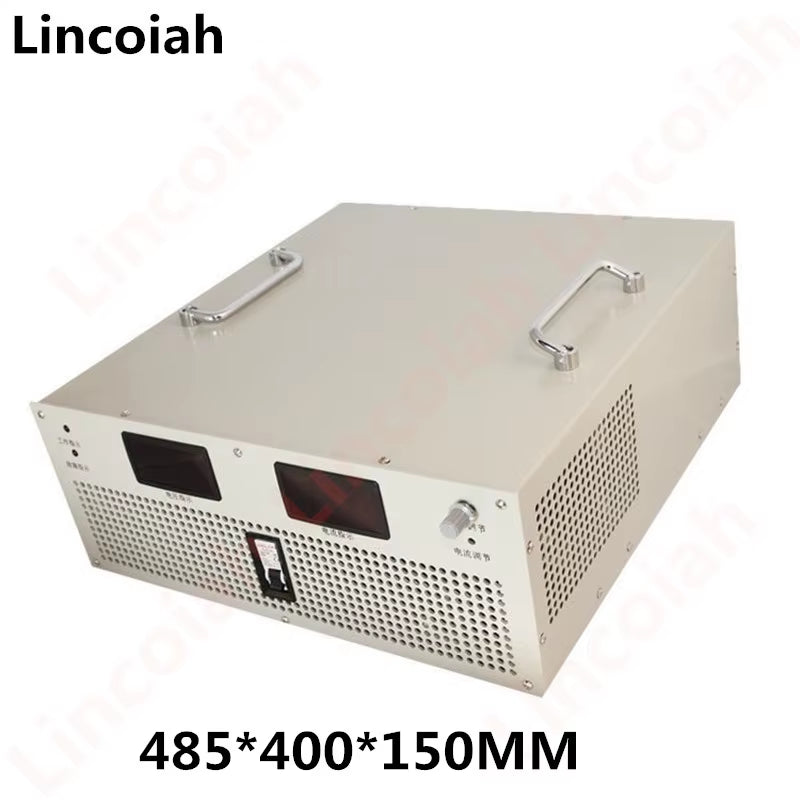

Overall size：48.5*40*15cm
